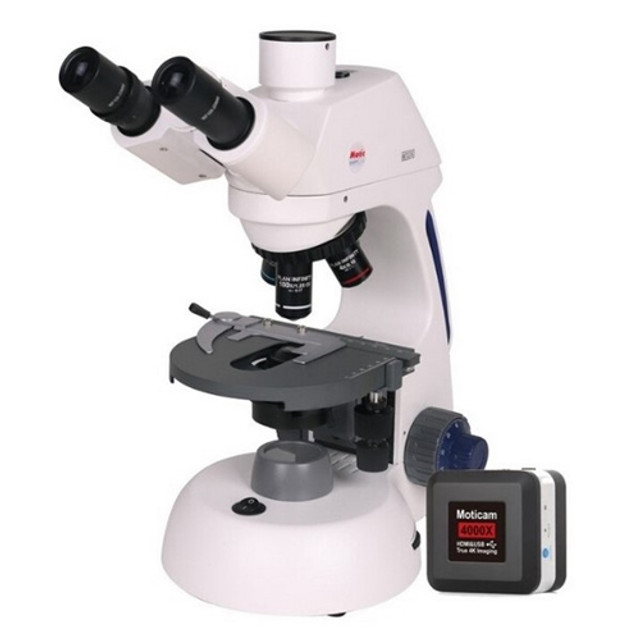

Moticam 4000X HDMI and USB Microscope Camera

This Moticam 4000X is an 8 megapixel digital camera that can be attached to your microscope and can be enabled to share your images with up to 6 devices at the same time. A computer is not required for operation as the camera can be connected to a monitor through its HDMI port, and a mouse can be connected to the camera via its USB port. Alternatively, the camera can be connected to a computer via its USB port and will run off the Motic Images Plus application software.

Camera Specifications

• 8 mega pixel camera (1/2.8" CMOS sensor)
• Sensor Area: Diagonal 6.4mm
• Pixel Size: 1.45 x1.45µm
• Resolution:
  • HDMI (4K):  30 frames per second (fps) @ 3840 x 2160
  • Wifi: 25 fps @ 1920 x 1080
  • Wifi: 12 fps @ 3840 x 2160
  • USB (4K): 30 fps @ 3840 x 2160
• Outputs: HDMI, UXC, WiFi
• Wifi performance: 802.11ac 433.3Mbps; RF Power 20dBm(Maximum)
• Interface: USB 2.0, USB 3.0, or HDMI
• Captures images up to 3840 x 2160.
• Includes Motic Images Plus software
• Includes 12V power adapter, CS ring, Adapter Ø30/ Ø38, 12mm lens, macro tube, macro calibration card, and 4 dot calibration slide.
• Camera connects to microscope via C-mount (not included)

Software

• iOS: Tablet or Phone Devices with free downloadable App MotiConnect (App Store)
• Android: Tablet or Phone Devices including Chromebook with free downloadable App MotiConnect (Google Play Store)
• Computer with Windows / Mac OS with Motic Images Plus software

Warranty: 1-Year Limited Warranty

View the Moticam 4000X microscope brochure here.

View the Moticam 4000X microscope datasheet here.

Motic part # 1100600101641
