KR-304 Crossline glass eyepiece reticle 360° with 45° increments in all quadrants. Available in a variety of diameters (select when ordering). Lines: C… Read more
SKU: KR304
Reticle Option: No Scale
$125.00
Hurry up! Current stock:
icon Share icon Share
Request a quote
Description

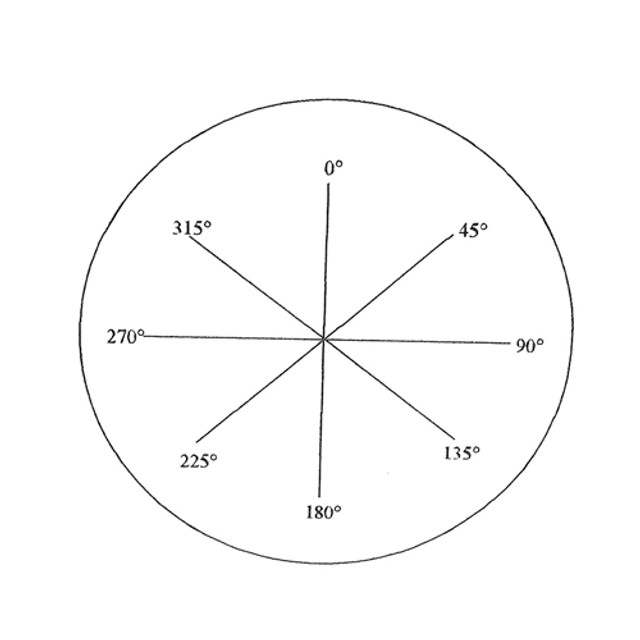

KR-304 Crossline glass eyepiece reticle 360° with 45° increments in all quadrants. Available in a variety of diameters (select when ordering).

  • Lines: Chrome deposition
  • Chamfer: 0.010" - 0.020"
  • Flatness: 2 waves or better
  • Centering: Within 0.005"
  • Glass Thickness: 1.5mm +/-0.1mm
  • Surface Quality: 20/10
  • Parallelism: 2 min.
  • Angular Accuracy: Within 5 min. of arc

NOTE: This is a special order product. Please allow 2-3 weeks for delivery. This item is not returnable.
