Reticle Grid 10mm Squares 1,600 Total
Reticle Grid 10mm Squares 1,600 Total
Reticle Grid 10mm Squares 1,600 Total

Reticle Grid 10mm Squares 1,600 Total

No reviews yet Write a Review
KR-475 glass eyepiece reticle. Grid 10mm x 10mm. 1,600 squares total (40x40) 0.15mm squares with numbers and letters. Diagonal equals 8.48mm. Available in a var… Read more
SKU: KR475
Measurement: Metric
Square Size: 0.15mm
$125.00
Hurry up! Current stock:
icon Share icon Share
Request a quote
Description

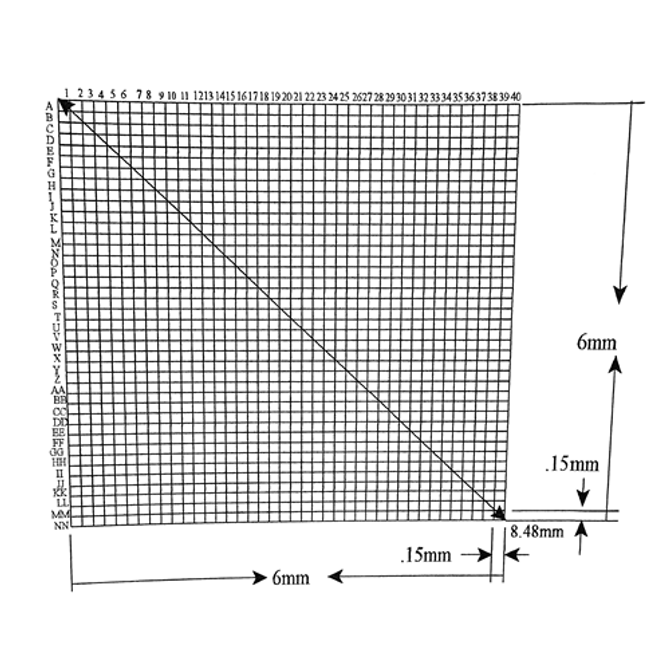

KR-475 glass eyepiece reticle. Grid 10mm x 10mm. 1,600 squares total (40x40) 0.15mm squares with numbers and letters. Diagonal equals 8.48mm. Available in a variety of diameters, select when ordering.

  • Each Square: 0.15mm x 0.15mm when using 1x objective
  • Lines: Chrome deposition
  • Chamfer: 0.010" - 0.020"
  • Flatness: 2 waves or better
  • Centering: Within 0.005"
  • Glass Thickness: 1.5mm+/-0.2mm
  • Surface Quality: 20/10
  • Parallelism: 2 min.

NOTE: This is a special order product. Please allow 2-3 weeks for delivery. This item is not returnable.
