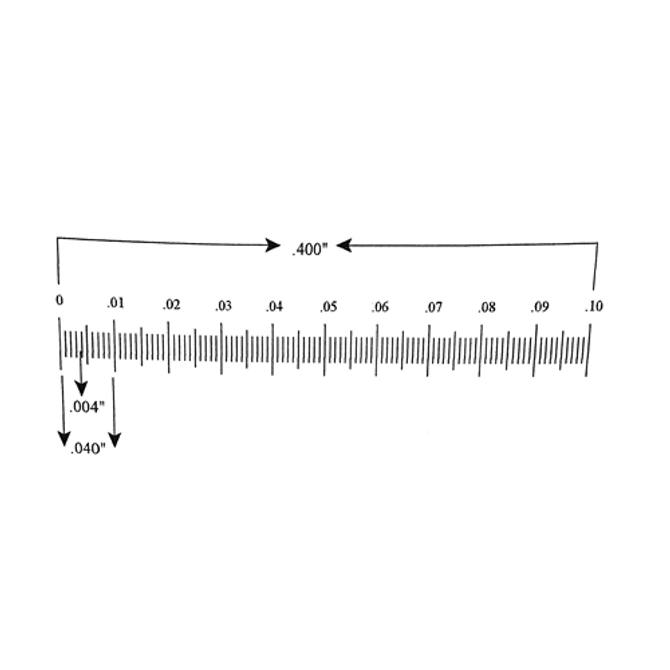

Reticle Ruler 0.400 Inch 100 Divisions

KR-204 Ruler reticle 0.400" in 100 divisions. Learn how to make accurate measurements when using your reticle here and learn about calibrating your microscope here. Reticle is available in a number of different diameters; select the desired diameter when ordering.

• Divisions: 0.004" with 1x objective
• Lines: Chrome deposition
• Chamfer: 0.010" - 0.020"
• Flatness: 2 waves or better
• Centering: Within 0.005"
• Glass Thickness: 1.5mm ± 0.1mm
• Surface Quality: 20/10
• Parallelism: 2 min.

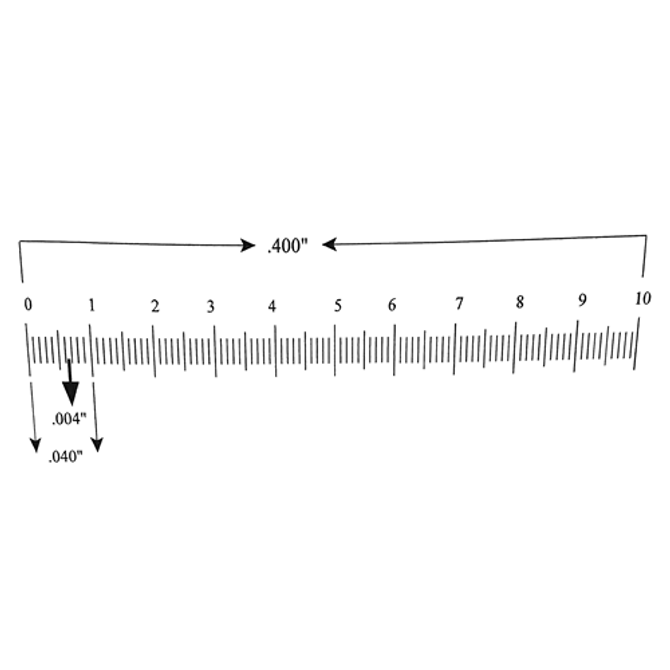

Numbering Options (select the desired option when ordering):

• 0-10
• 0-0.10
• 0-100
• 0, 0.01, 0.02..........0.20 every 5th division
• 0-10 to be used with 4x objective

NOTE: This is a special order product. Please allow 2-3 weeks for delivery. This item is not returnable.
