Swift M18 series biological lab microscopes are ideal for college-level laboratories and veterinary clinics. The microscope has infinity corrected optics and Koehler illumination, which provide clear, crisp images. This M18 digital microscope system includes an 8 mp digital camera.
- Head: Trinocular viewing head is inclined 30 degrees. Head has diopter and interpupillary adjustment between 54mm to 76mm. Includes c-mount adapter.
- Objective Lenses: DIN standard Infinity Corrected objective lenses are parfocaled and parcentered. Objectives are secured in a rotatable, inward-facing, and reversed four-position nosepiece for easy magnification change. The following objectives are included: Infinity Corrected Plan Objectives with 4x (NA = 0.10), 10x (NA = 0.25), 40xR (NA = 0.65), and 100xR (oil, NA = 1.25) magnification.
- Eyepieces: Widefield 10x eyepieces have a 20mm field of view. Eyepieces accept a 21mm diameter reticle.
- Total Magnification: 40x, 100x, 400x, 1000x.
- Specimen Stage: Includes built-in mechanical stage measuring 5.75" x 5.5" (142mm x 140mm) with low-profile ball-bearing mounted mechanical specimen holder with coaxial controls.
- Condenser: Abbe NA 1.25 condenser has rack and pinion focusing, with iris diaphragm to increase contrast.
- Focusing: Has coaxial coarse and fine focusing controls allow for fine-tuned focusing. Coarse focusing has tension adjustment, and the fine-focus knob is graduated.
- Illumination: Corded microscope. Has 3W LED Koehler illumination.

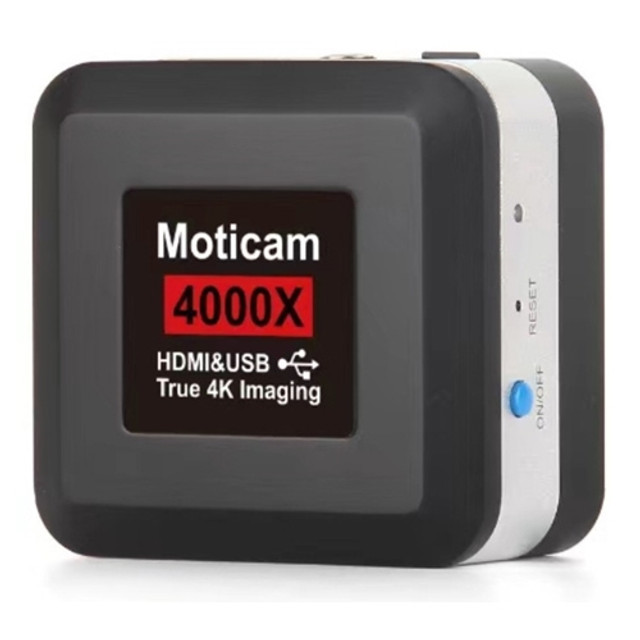

- HD Camera: Includes 8 megapixel HD camera with output via HDMI HD monitor, Wifi, or USB. Read here for the full specifications of the Moticam 4000X.
- Size: 10.25" x 6.75" x 14.5" (261mm x 172mm x 369mm)
- Weight: 21 lbs.
